Arrow direction in combination with layout direction issue

+1 vote
asked Sep 10 in Bug by Ricardo

To change arrow layout direction is required if any arrow flows back to a component in front.
Example: Second2 --> First

@startuml
top to bottom direction

rectangle "First" as first

rectangle "Second1" as s1
rectangle "Second2" as s2
rectangle "Second3" as s3

rectangle "Third1" as t1
rectangle "Third2" as t2

rectangle "Fourth1" as f1

first --> s1
s2 -UP-> first
first --> s3

t1 -UP-> s1
s2 --> t2

t1 --> f1
@enduml

The same is true if someone uses

left to right direction

Bug:

Using "left to right direction" in combination with arrow LEFT, RIGHT, UP, DOWN is not rendered correctly.

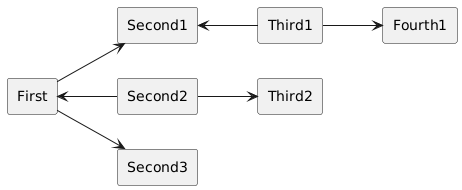

I want to achive this:

with this code:

@startuml
left to right direction

rectangle "First" as first

rectangle "Second1" as s1
rectangle "Second2" as s2
rectangle "Second3" as s3

rectangle "Third1" as t1
rectangle "Third2" as t2

rectangle "Fourth1" as f1

first --> s1
s2 -LEFT-> first
first --> s3

t1 -LEFT-> s1
s2 --> t2

t1 --> f1
@enduml

But need to use this one:

@startuml
left to right direction

rectangle "First" as first

rectangle "Second1" as s1
rectangle "Second2" as s2
rectangle "Second3" as s3

rectangle "Third1" as t1
rectangle "Third2" as t2

rectangle "Fourth1" as f1

first --> s1
s2 -UP-> first
first --> s3

t1 -UP-> s1
s2 --> t2

t1 --> f1
@enduml

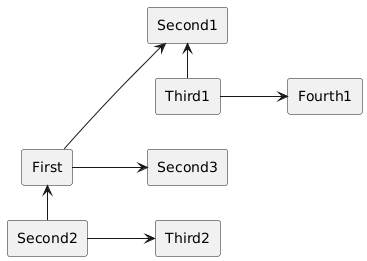

If I would use "LEFT" as expected, the rendering would be:

Thanks for help,
Ricardo
