State labels overlap with participants' names

0 votes
asked Feb 28, 2020 in Bug by Toparvion (140 points)

If a participant on a timing diagram has quite long name and its first activity is close to the diagram's left border then the label of the activity may overlap with participant's name:

Example

See top left corner of the diagram only.

commented Feb 28, 2020 by albert (3,520 points)
Can you include the image direct in the question (including the code to generate it) or place the code in the Plantuml webserver (http://www.plantuml.com/plantuml/) and place the resulting link in the question?
commented Mar 2, 2020 by Toparvion (140 points)

Thanks for pointing me to Plantuml webserver, it is very useful tool for providing issue details!

Here the link to reduced example of the overlapping:
http://www.plantuml.com/plantuml/uml/SoWkIImgAStDuKhEpqlEB4vLK79sSGoETtCDSVQ8TmrpzGjHKaWiLa0NH2ZFIeet0Yi1CRYAanDpKXMC3K02XWO62WMP5QavnLmbcIL0OQ2UlDJaalmYlPpyT2u3XSnYXUgCp9IKrBnQBYu7T2iW2YmC5AmKKfAuj2qWwdL1IbFpKe1E1W00

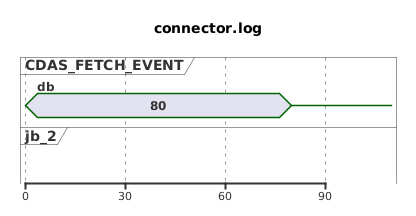

Visualizing the example

1 Answer

0 votes
answered Mar 6, 2020 by plantuml (294,960 points)
Thanks for the report.

This has been fixed in last beta http://beta.plantuml.net/plantuml.jar

Tell us if it's not working for you !
...
