Activity Diagram (Beta): Increase space between (some SDL) shape and arrows

0 votes
asked May 16 in Wanted features by The-Lu (10,120 points)
edited May 16 by The-Lu

Hello PlantUML,

In Activity Diagram (Beta), can the space between (some SDL) shapes and arrows will be increased?


Adapted from an answer of albert, from https://forum.plantuml.net/9874/detach-after-endwhile-does-not-detach?show=9878#c9878

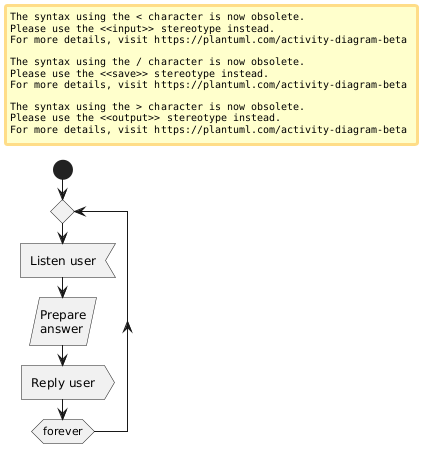

start
  repeat
    :Listen user<
    :Reply user>
  repeat while (forever)


Could you add more space between shape and arrows, especialy for the shapes (':<', ':>') that are more larges than the regular shapes (':;', ':|' or ':]').

Regular shapes: OKSome SDL shapes: KO
(the arrow touchs the shapes)

  PlantUML diagram

PlantUML diagram

Thanks for the correction,

Regards,
Th.

1 Answer

+1 vote
answered Oct 26 by plantuml (235,460 points)
Thanks for the report !

This should be fixed in last beta http://beta.plantuml.net/plantuml.jar and on the online server.

Tell us if it's not working for you.
commented Oct 27 by The-Lu (10,120 points)

Hello PlantUML,

Thanks for this correction.

Then see also this remark on /12238:

See also, similar issue with:

where, on vertical mode, the vertical lines are too close to the box ('Text 2', 'Text 3' and 'Text 4').


[See on PlantUML server]

Regards,
Th.

...
