Can I align stereotypes in column for component diagram?

0 votes
asked Nov 27, 2020 in Wanted features by udelledo (120 points)
recategorized Jan 19 by udelledo

Hello fellow users,


Is there any way to allow rendering the stereotypes of a component in column rather than as a single line?

Trying to leverage the integration between plantuml and archunit I have to create a diagram that contains package coordinates as stereotypes of a component.

In cases where I want to group several packages into a single component (for example because the two different packages cover implementation details of the same functional component) I end up with a component that become too wide and make the diagram too wide and difficult to read

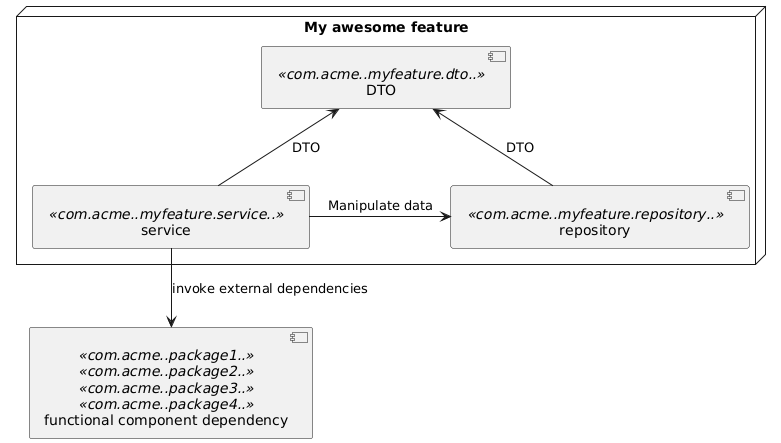

Here's an example diagram http://www.plantuml.com/plantuml/png/TP0_QyCm44TtVOeZkmNzCnbZCdGDNRgP3eTqAIBMdP1EIKtfTs_jkXXAFR-ddnvtB8fPQnpDSAxiD0ZZ24vY4YPMy9I8FR6RNg7hd4IBBfAr2Tq5t-ZEshx_3zplWOSzyBW0BFENXiKJ74uJu8sAH88peTPCXmypP4fIWah-anIdLRARiMoQeL2-1aTx_efN-UdbUK_qAekqPAgOJxC-XQRfv_0M0b_bGa3lIfbnt0uOg6nsloMsS48EgOwe11uLpSQWgMaULcdXEyju5UWQBpTku7VhXno9VOtZ5m00


@startuml
[functional component dependency] <<com.acme..package1..>> <<com.acme..package2..>> <<com.acme..package3..>> <<com.acme..package4..>> as dep
node "My awesome feature"{
[repository] <<com.acme..myfeature.repository..>>
[service] <<com.acme..myfeature.service..>>
[DTO] <<com.acme..myfeature.dto..>>  as dto
}
service --> dep: invoke external dependencies
service ->repository: Manipulate data
repository -up-> dto: DTO
dto <-down- service : DTO
@enduml

Any help or suggestion will be appreciated.

Thanks
