Arrow not correct with Json Big Data

0 votes
asked Dec 1, 2020 in Bug by Serge Wenger Work (13,660 points)

Hello,

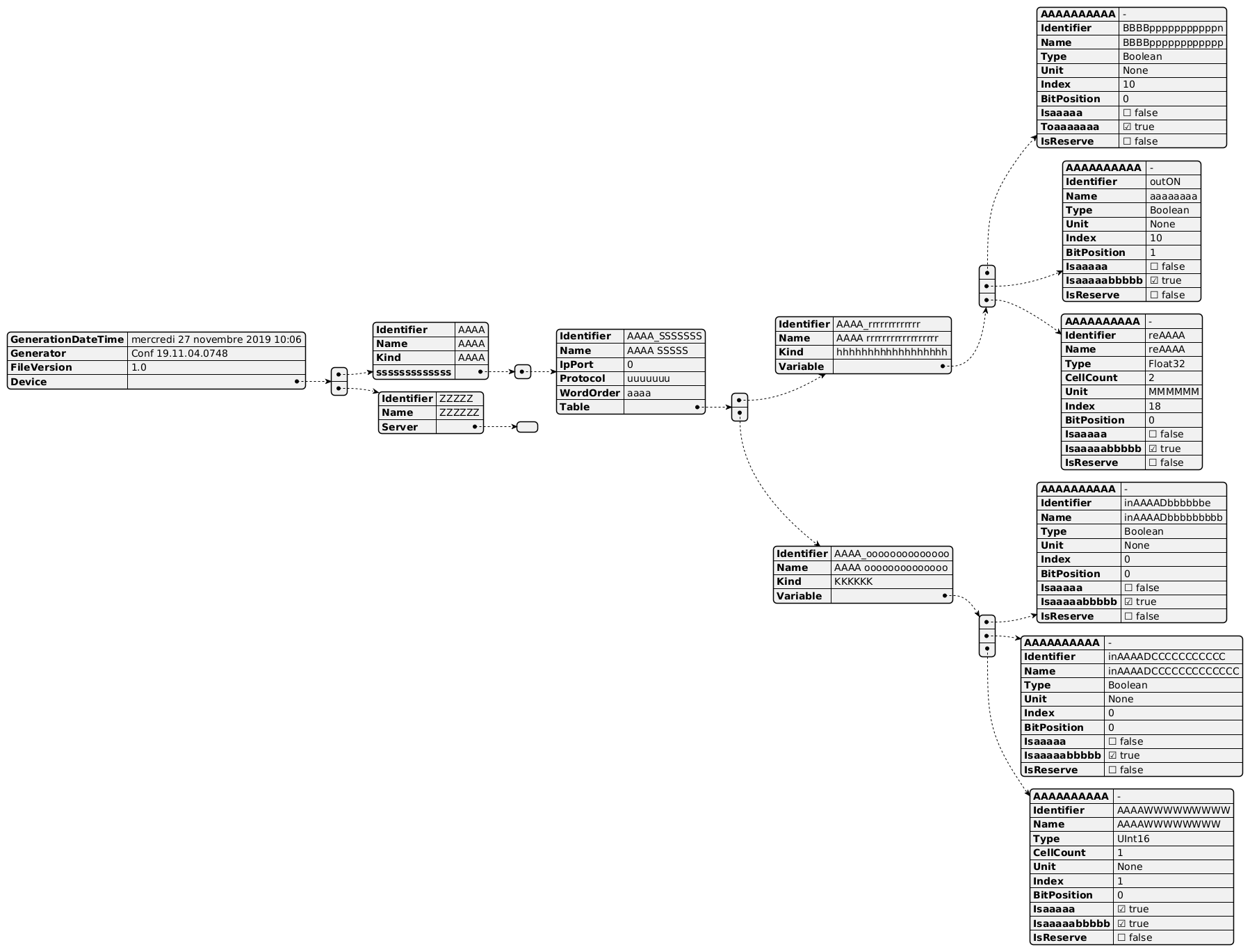

Thanks for this very nice new feature. There is some problems with arrows on the following diagram:

See on PlantUML server

commented Dec 1, 2020 by albert (2,940 points)
Would be nice when you give an indication of what goes wrong...
commented Dec 2, 2020 by Serge Wenger Work (13,660 points)
Hello,

There is 9 columns in the drawing (from left to right). The errors are:

1) The arrow to the upper block in the 7th column start not at right position (big error)

2) The arrow to the upper block in the 9th column start not at right position (small error)

3) The arrow to the lower block in the 9th column start not at right position (small error)

1 Answer

0 votes
answered Dec 1, 2020 by plantuml (240,420 points)
selected Dec 6, 2020 by Serge Wenger Work

Best answer

Thanks for the feedback.

Please be patient : it will be long and difficult to solve, but we will find it.

The main reason is that this "json diagram" feature is the first official use of the smetana project.

Smetana is a source translation of C Dot/GraphViz to Java. This means that "json diagram" don't use any external GraphViz installation. It runs in pure Java.

So this bug means we have done a slight mistake somewhere in our C-to-Java translation. To find it will not be an easy task...

commented Dec 2, 2020 by Serge Wenger Work (13,660 points)
Thanks for this nice new feature and the explanations. I will be patient. You can mail me if you need testing
commented Dec 4, 2020 by plantuml (240,420 points)

We've been lucky on this one : we find the error !

This is fixed in last beta http://beta.plantuml.net/plantuml.jar and on the online server.

Tell us if you find other issues!

...
