How to combine horizontal mode and vertical mode to have concise nested Conditional structure in Activity Diagram

0 votes
asked Feb 4, 2022 in Bug by kasra (820 points)


the command !pragma useVerticalIf on once used is applied to the whole graph.

Is it possible to apply it locally ? or it's always global?

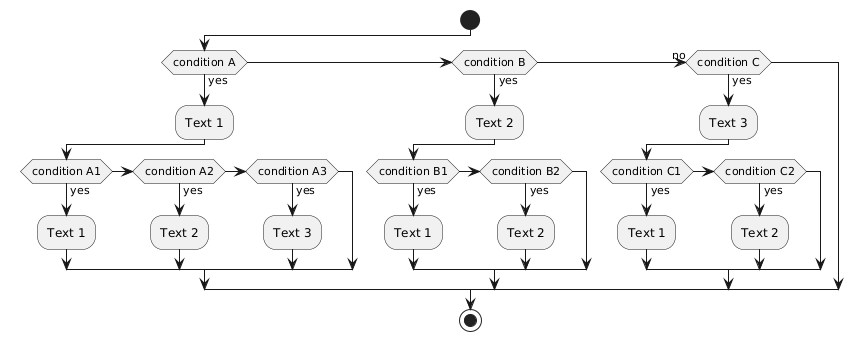

if (condition A) then (yes)
  :Text 1;
!pragma useVerticalIf on
if (condition A1) then (yes)
  :Text 1;
elseif (condition A2) then (yes)
  :Text 2;
 elseif (condition A3) then (yes)
  :Text 3;
!pragma useVerticalIf off
elseif (condition B) then (yes)
  :Text 2;
if (condition B1) then (yes)
  :Text 1;
elseif (condition B2) then (yes)
  :Text 2;
(no) elseif (condition C) then (yes)
  :Text 3;
if (condition C1) then (yes)
  :Text 1;
elseif (condition C2) then (yes)
  :Text 2;

Is it a bug or something not implemented ?

Best regard!


commented Feb 8, 2022 by kasra (820 points)
Is it possible at least to know if it's a bug or not ( not implemented )

thanks in advance
