Activity diagram - Colors for FORK

0 votes
asked Aug 23, 2022 in Question / help by Pb

Hi,

Im trying to do something like this. The problem is that despite using colored arrow and style left arrow is still black (example 1). But when i add one additional activity field into the schema it starts to work. (example 2)

Is there any way to color this arrow without additional field?

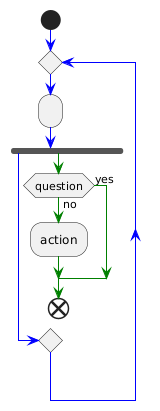

Example 1




@startuml

skinparam ConditionEndStyle hline

<style>

arrow{

LineColor blue

}

</style>

start

repeat

:;

fork

-[#blue]->

fork again

-[#green]->

if (question) then (no)

-[#green]->

:action;

-[#green]->

else (yes)

-[#green]->

endif

-[#green]->

end

end merge

@enduml

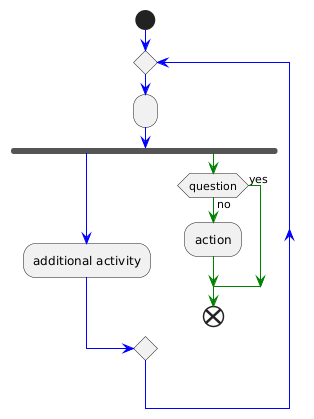

Example 2

@startuml

skinparam ConditionEndStyle hline

<style>

arrow{

LineColor blue

}

</style>

start

repeat

:;

fork

:additional activity;

-[#blue]->

fork again

-[#green]->

if (question) then (no)

-[#green]->

:action;

-[#green]->

else (yes)

-[#green]->

endif

-[#green]->

end

end merge

@enduml
