1.2024.6 regression: combination of <color:xxx> and <back:xxx> shows no text anymore

Question

Hi, just downloaded version 1.2024.6 and discovered a regression (activity diagram): I use a combination of <color:xxx> and <back:xxx> tags in the legend to document the colors used in my diagram, which worked fine in 1.2024.5, but in 1.2024.6 the text color specified in the tag is ignored (overridden to be the same as the <back> color ?

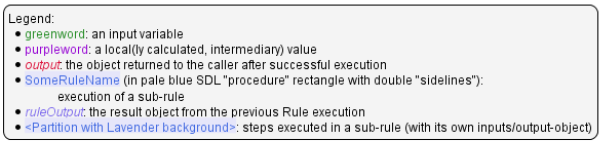

1.2024.5: https://i.postimg.cc/wvg02dJh/image.png

1.2024.6: https://i.postimg.cc/Y0S8cfd0/image.png
Abbreviated test source:

legend top right

    Legend:

        &#8226; <color:RoyalBlue><back:Lavender>SomeRuleName</back></color> (in pale blue SDL "procedure" rectangle with double "sidelines"):

            execution of a sub-rule

end legend

Comments

Hello I.,

Yes there is a defect.

See similar report here:

• https://github.com/plantuml/plantuml/issues/1856

Regards,
Th.

---

Hi The-Lu, thx for your response.
Re: https://github.com/plantuml/plantuml/issues/1856
I can confirm that v1.2024.7beta5 jar again renders my diagram correctly, so I'll wait for the 1.2024.7 release
