vertical alignment not honored

0 votes
asked Apr 21, 2016 in Bug by yann (200 points)

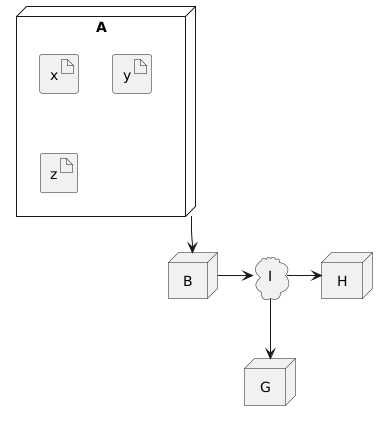

In this graph, the A --> B edge is not vertical as requested, unless I remove one sub-element of A

@startuml

node A {
  artifact x
  artifact y
  artifact z
}

node B

cloud I

node G

node H

A --> B
B -> I
I --> G
I -> H

@enduml

1 Answer

0 votes
answered Apr 21, 2016 by plantuml (295,000 points)
selected Jan 19, 2018 by yann

Best answer

Unfortunatly, we are facing here some GraphViz limitation.

The only workaround is to use a longer arrow: A ---> B instead of A --> B

The result is slightly better, but there is no way to center the AB arrow.



Hope this helps!

...
