note right breaks split in Activity-beta
0
votes
asked
Dec 17, 2018
in
Bug
by
aho
(
160
points)
edited
Dec 18, 2018
by
aho
Hi,
I'd like to report a bug.
Using "note" on the first element of a split, breaks the layout, see
http://www.plantuml.com/plantuml/uml/7Or13i8m30JlViL-0OxqKfxYKDDQAawKB8BdD_BDtbtDh8FQ-VsSaeUCTZhbKRJV5ebAaoUA4_KDsf_ORBow5uyTlqE9Grkp66An8US9WExgaPZxabt6qr6RhFEVmWi0
Using "note right" on the last element in a split breaks the layout, too, see

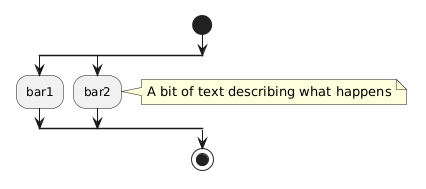

http://www.plantuml.com/plantuml/png/9Or13i8m40Fl-mf_0OxqKfwoeI5PgMoYh14ydvBUPYpPNeCw-7xjCa6YxqQv9HsNvHHeKVCPNHVnnenXfLBkI4Qq9vY_n9RZCIoP5tog4bLxpnwIVSE_DE5S3xOkw-77xGy0
Code:
@startuml
start
split
:bar1;
note
A bit of text describing what happens
end note
split again
:bar2;
end split
stop
@enduml
and
@startuml
start
split
:bar1;
split again
:bar2;
note right
A bit of text describing what happens
end note
end split
stop
@enduml
Tested with version 1.2018.14beta13.
Regards
activity-beta
note
commented
Dec 18, 2018
by
albert
(
3,520
points)
Latest beta is a bit of a moving target, could you mention the beta version ( -version option)?
commented
Dec 18, 2018
by
aho
(
160
points)
Sorry, didn't know about this.
Version is
PlantUML version 1.2018.14beta13
Your comment on this question:
Your name to display (optional):
Email me at this address if a comment is added after mine:
Email me if a comment is added after mine
Privacy: Your email address will only be used for sending these notifications.
Anti-spam verification:
To avoid this verification in future, please
log in
or
register
.
Your answer
Your name to display (optional):
Email me at this address if my answer is selected or commented on:
Email me if my answer is selected or commented on
Privacy: Your email address will only be used for sending these notifications.
Anti-spam verification:
[Antispam2 Feature: please please wait 1 or 2 minutes (this message will disappear) before pressing the button otherwise it will fail]
(--------)
To avoid this verification in future, please
log in
or
register
.
1 Answer
0
votes
answered
Dec 19, 2018
by
plantuml
(
295,000
points)
No problem : beta is indeed an endless run :-)
Anyway, thanks for the report.
This should be fixed in last beta
http://beta.plantuml.net/plantuml.jar
(that is PlantUML version 1.2018.14beta15 right now)
Tell us if it's not working for you!
Your comment on this answer:
Your name to display (optional):
Email me at this address if a comment is added after mine:
Email me if a comment is added after mine
Privacy: Your email address will only be used for sending these notifications.
Anti-spam verification:
To avoid this verification in future, please
log in
or
register
.
