two control structures ending in same end?

+1 vote
asked 5 days ago in Question / help by rkrug (360 points)

I have the following code:

@startuml
start
:= some initial stuff;
repeat
  := Validate;
  if (erros or warnings(?)) then (yes)
    := Edit;
  else (no)
  endif
repeat while ()
''''''''''''
:= some final stuff;
''''''''''''
stop
@enduml

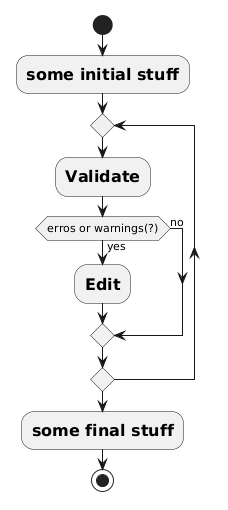

http://www.plantuml.com/plantuml/png/LOyn2iCm34LtdK9RxIiqb6Rf5ReRB3S2HmwIGkZjwuGIMaqIxt_n_sYUrDUv0XmRN6zeRIPaOUTKqNmjPG2bXP83OkVFL3adfw6VN32GQZDiYbjIONbPkCU8Ff5WU9F5BZjyZyo-UwWQOP2s0vBCvViTjubh9n4kFtCcAYnddd-5ULi0HfBSYtm0

Is it possible to eliminate one of the two symbols below the "Edit", so that one arrow goes in and the other two out?

Thanks,

Rainer
