state chart name choice state

0 votes
asked Nov 10, 2020 in Question / help by marcpawl (120 points)
edited Nov 10, 2020 by marcpawl
I have a choice state, that I would like the name in the rendered graph so it is easier to follow in my implementation.

I have

state is_active_choice <<choice>>
[*] --> is_active_choice

is_active_choice --> wait_for_active : [!has_active_manager]
is_active_choice --> standby : [is_other_active_manager]

Is there a way to have text in the diamond?
commented Nov 11, 2020 by Martin

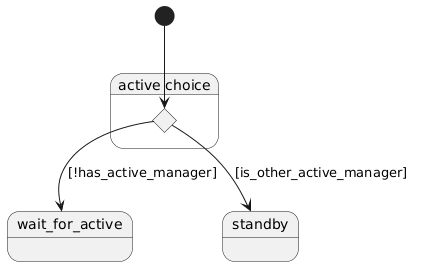

The best idea I could come up with is:
