Is defaultFontStyle broken?

0 votes
asked Jul 8, 2022 in Bug by themarquee (120 points)
I use primarily Component Diagrams and I generally bold all my text to make it contrast better with shape background colors. I have tried to use "skinparam defaultFontStyle bold" but it doesn't seem to have any effect on the diagram. If I use the individual xxxFontStyle directives, it will work. The other defaultFontXXX directives also seem to work fine (Name, Size, and Color).

For the record, bold nor italic will work. I use the excellent which seems to keep up-to-date with PlantUML versions (I believe it is back-ended by the server provided by PlantUML themselves). I have tried for several months and across PlantUML versions to no avail.

Just curious if this is broken or if there is something else I need to do to get it to work.

1 Answer

+1 vote
answered Jul 9, 2022 by The-Lu (65,440 points)
selected Jul 13, 2022 by themarquee
Best answer

Hello N.,

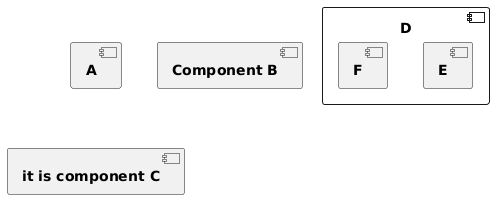

For that, you can now use `style`, as:

element {
  FontStyle bold
component A
component "Component B"
component C [
it is component C
component D {
