hello there!
i've got a question on stereotypes formatting: why stereotype classes get not only head, but whole body formatted italic? is it UML standard specific thing? or is it some plantuml glitch?
see below

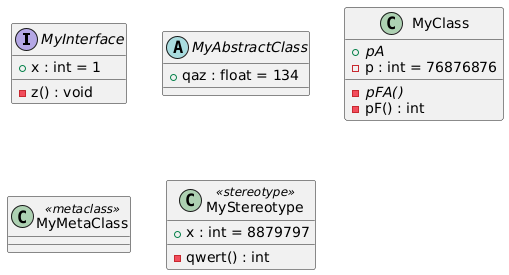

@startuml
' interface's title is marked italic - that's fine
interface MyInterface {
+ x : int = 1
- z() : void
}
' abstract class's title is marked italic - that's fine too
abstract MyAbstractClass {
+ qaz : float = 134
}
' class's title is not marked - that's fine as well
class MyClass {
' some properties and operations may be merked as abstract
+ pA {abstract}
- p : int = 76876876
- pFA() {abstract}
- pF() : int
}
/'
metaclass is not formatted despite it is most abstract thing
in UML
'/
class MyMetaClass <<metaclass>>
/'
when class is marked as some stereotype - whole object gets formatted italic
however, not all stereotype's features should be abstract features, imo,
since stereotype may inject some real functionality into an entity it's applied
onto
'/
class MyStereotype <<stereotype>> {
+ x : int = 8879797
- qwert() : int
}
@enduml
link to sample
