arrow incorrect with long text if

Question

hello!

assume i have a long texted if, the arrow shows a little incorrect!

www.plantuml.com/plantuml/png/VOx1JiGm34Jl-GeVTu_m1TikuiPUE76qMeSO4XlL3cZvUaeZLLK5AqkZEFDcv9CvJbvBXfZrQqZp4eAzitpWX0MwmVcJ_Vh0M5J6HnM_O24ugvXcj0qwKiIQ_HTvvc-2k_kDUL6dDVp4mwIcqU454_46ooIldhhnhPg3g51OpWiSuH2wDarssn4yaS3XIdPizFwJib4W6JakpuNfr_cZeBzTqA3p3cf-i_f_ywk6qoorv1y0

Comments

Hello D., and all,

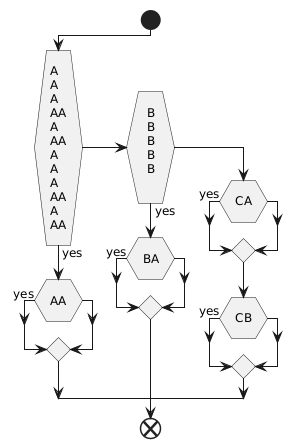

Here is a possible workaround using dummy label, as:

@startuml flowchart
skinparam ActivityDiamondFontName Consolas
skinparam defaultFontSize 12
skinparam NoteFontName Microsoft Yahei
skinparam lengthAdjust none
start
if (
A
A
A
AA
A
AA
A
A
A
AA
A
AA
) then (yes)
if (
AA
) then (yes)
else
endif
elseif (
B
B
B
B
B

) then (yes)
if (
BA
) then (yes)
else
endif
else
label dummylabel
if (
CA
) then (yes)
endif
if (
CB
) then (yes)
else
endif
endif
end
@enduml

Enjoy,
Regards.

Answer 1

Thanks for the feedback

This should be fixed now.
