State machine invalid generation for SVG

Question

Tested with version 1.2024.8beta3

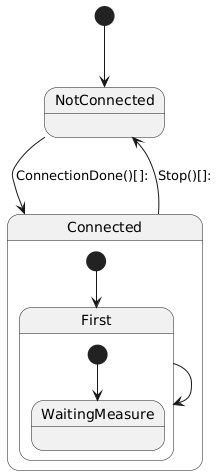

WIth the following code, the PNG is OK, but not SVG https://www.plantuml.com/plantuml/uml/XP91QuGm48NlyoiUdjg2Vy134LfwivSUUWX1GWqbq2R5Z2VnlrTbbbrtiYnuqCdxtdkCQJExaQVV7oBpP57Np-XSYFrxufSKe_zYFz2gOO_gSbR1PQs4CRCQBjRYP57WDNmWCHC0wNP5z6zXpBoTY_t-BTPQA05gVewvazH_ki0XVdVUvMdqGaZsyQnSGdkeJcNPlaC02sXz2AHNhqkZWRo755zJz0-FnZR2Ql1er-23qvyGfOQt_mUrFWxRbVe7

PNG

SVG

Comments

Hi S.,

Good catch.

For PlantUML team, here is a minimal not working example (That seems due to the link and tooltips, and the nested state):

Code	@startuml state S [[{S}]] { state a [[{a}]] { state b } } @enduml
PNG
SVG

If that can help for debugging...

Regards,
Th.

---

Hi,

I have an internal application and this bug is real problem. The users need to export to PNG and transform it in SVG.

Did you have a time frame to correct this bug?

Answer 1

Hi,

With Version 1.2024.8 the  minimal not working example is OK, but my example is still not OK

Comments

Hello S.,

To follow:

• [SVG] Missing label when URL link/anchor used #2148

• Could you retest, with last snapshot (since begin of April)?

Then it seems that all tests are resolved...

Regards,
Th.

---

Hello Th,

My example is now OK.
