How to change this Activity Diagram to the new syntax?

0 votes
asked Apr 2, 2015 in To be sorted by anonymous
@startuml
(*) --> setp1
->setp2
->setp3
if successful? then
-> [false] setp1
else
-> [true] setp4
end if
-> setp5
if successful? then
-> [false] setp3
else
-> [true]setp6
end if
->(*)
@enduml

1 Answer

0 votes
answered Apr 2, 2015 by plantuml (265,060 points)

It's not easy to convert this to the new syntax.

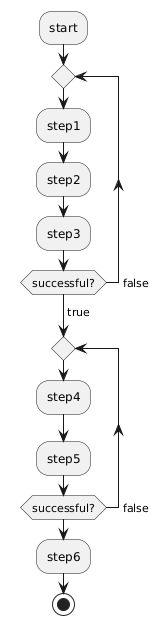

One close solution would be:

:start;
repeat
  :step1;
  :step2;
  :step3;
repeat while (successful?) -> false
-> true;
repeat
  :step4;
  :step5;
repeat while (successful?) -> false
:step6;
stop

But that's not exactly your example.

The difficulty is that the new activity beta syntax is close to usual C/Java/C#/VB/Python/C++ language.

Implementing your example (especially the link back to step3 ) with those languages is not that easy, because it breaks execution flow.

...
