UML Communication diagram

0 votes
asked Oct 8, 2017 in To be sorted by anonymous
Is there a way to create an UML Communication diagram?

Example: https://en.wikipedia.org/wiki/Communication_diagram

1 Answer

0 votes
answered Nov 15, 2017 by mgrol (2,570 points)

Hi,

you can emulate a communication diagram like this:

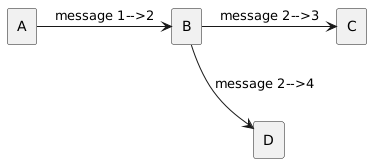

Here is the code snippet for that example:

@startuml
skinparam linestyle ortho
rectangle "A" as one
rectangle "B" as two
rectangle "C" as three
rectangle "D" as four

one -right-> two: message 1-->2
two -right-> three: message 2-->3
two --> four: message 2-->4
three -[hidden]- four
@enduml

BR,

Michael

commented Nov 17, 2017 by Micha
Thank you very much, Michael! That's what I need.
commented Nov 17, 2017 by mgrol (2,570 points)
Hi Micha,

I am glad to hear. For more details you may also look here: http://plantuml.com/archimate-diagram.
BR,
Michael
...
