teoz + create + & note issue

+1 vote
asked Apr 8, 2019 in Bug by anonymous


Minor issue when using teoz, creating participants and using & note.

In version 2019.04

!pragma teoz true

participant Bob #red
participant Alice #white
participant Ken #yellow
participant Jane #pink

Bob -> Alice : hello
& note right of doc: txt

Alice -> Ken ** : Birth
& note right of doc: txt

Alice -> Jane ** : Birth
note right of doc: txt

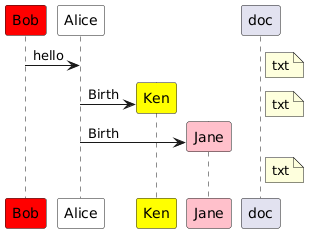

PlantUML diagram

Line for Ken start too early. That is triggered by "& note".



commented Apr 9, 2019 by mawi (620 points)
The problem - that the *lifelines extend above being created* is more general, I believe - it is not triggered by the note.

Here is an example which does not include a note - I have not analyzed/understood the cause / what triggers the problem:


I have had this issue for some time.

As always, thanks for a great tool!

BR! /marcus

1 Answer

0 votes
answered Apr 16, 2019 by plantuml (277,020 points)
Thanks for the feedback.

It should be ok with last beta http://beta.plantuml.net/plantuml.jar

Tell us if it's not working for you !
