backward for while: confusing arrow layout on continuation

0 votes
asked Apr 19, 2020 in Bug by PascalChap (320 points)

Hello,

With the last version (V1.2020.7) you have add the possibility to use a backward command within a while loop. it works, but if you want to continue the diagram, the loopback arrow touch the continuation one and therefore the diagram is confusing:

@startuml
start

while(a)is(b)
   :do something;
   backward:test;
endwhile

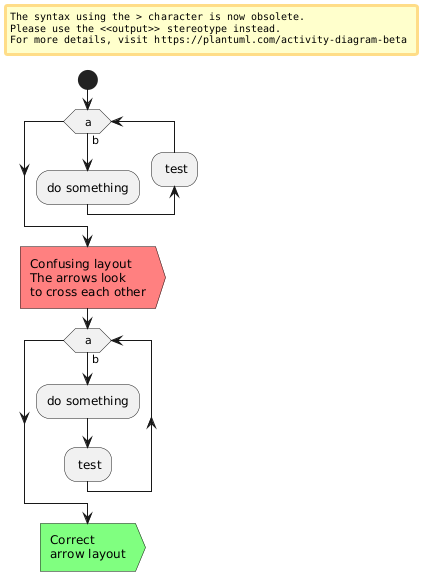

#FF8080:Confusing layout
The arrows look
to cross each other>

while(a)is(b)
   :do something;
   :test;
endwhile

#80FF80:Correct
arrow layout>
@enduml

PlantUML diagram

1 Answer

0 votes
answered Apr 28, 2020 by Pascal

Thank you for the very fast fix inV1.2020.8 smiley

...
