Improve arrow position (and especially at right angle)[on Gantt diagram][only for SVG]

0 votes
asked Jul 29, 2020 in Wanted features by The-Lu (67,080 points)

Hello PlantUML team,

On the same subject of the Improvement of arrow position.

  • Could you improve the arrow position or the arrow right angle definition, in this Gantt diagram example?

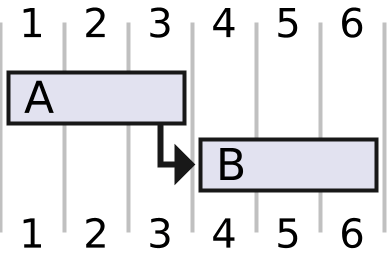

See issue, on v1.2020.15-16beta, only for SVG output, especially at the right angle of the arrow on the below output, [best observation with Scale 7 or more]:


[Click to see on PlantUML server...]

Thanks for the improvements,
Regards,
Th.

commented Dec 17, 2023 by The-Lu (67,080 points)
edited Dec 17, 2023 by The-Lu

Here is an update of the diagram (with @startgantt now...):

@startgantt
scale 7
[A] lasts 3 days
then [B] lasts 3 days
@endgantt

Compare SVG output (issue on the right angle of the arrow):

VS PNG output (the issue is at the end of the arrow on PNG output):

Regards,
Th.
