Incorrect string of ortho line

0 votes
asked Aug 4 in Bug by goyae (120 points)

Taking this small example to illustrate my problem.

@startuml
skinparam linetype ortho
title: ER diagram
entity users {
}
entity items #lightgray {
}
entity address {
}
entity files #lightgray {
}

users "1" ||--o{ "0..x" items
users "1" ||--o| "0..1" address #green
users "0..1" |o--o{ "0..x " files
@enduml

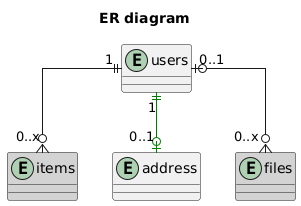

The green line string is the opposite of what I expected.

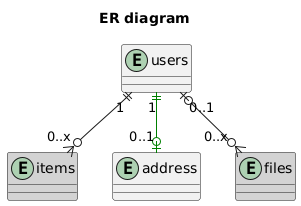

If remove the skinparam the string will be as expected.

@startuml
title: ER diagram
entity users {
}
entity items #lightgray {
}
entity address {
}
entity files #lightgray {
}

users "1" ||--o{ "0..x" items
users "1" ||--o| "0..1" address #green
users "0..1" |o--o{ "0..x " files
@enduml

Is there a way to correctly display a string using ortho line?
