Data mapping visualisation

Question

I would like to create/visualise data mapping structures "similar" like Altova MapForce with PlantUML features like coloring, style and others within cells.

Simple GraphViz example without PlantUML features:

@startuml
digraph G {
nodesep=1;
rankdir=LR;


dataX [shape=record,width=2,height=.1, label = "Data Structure 1|
<xfield1> Xfield1|
<xfield2> Xfield2|
<xfield3> Xfield3"];

dataY [shape=record,width=2,height=.1, label = "Data Structure 2|
<yfield1> Yfield1|
<yfield2> Yfield2|
<yfield3> Yfield3"];

dataZ [shape=record,width=2,height=.1, label = "Data Structure 3|
<zfield1> Zfield1|
<zfield2> Zfield2|
<zfield3> Zfield3"];

dataX:xfield1 -> dataY:yfield2
dataX:xfield2 -> dataY:yfield1

dataY:yfield1 -> dataZ:zfield2
dataY:yfield2 -> dataZ:zfield3

dataZ:zfield3 -> dataX:xfield3
}
@enduml

Comments

Does this help?

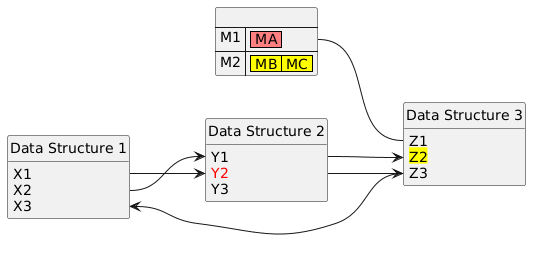

You can use a class diagram with creole, and depending on your use case a map might come in handy too:

---

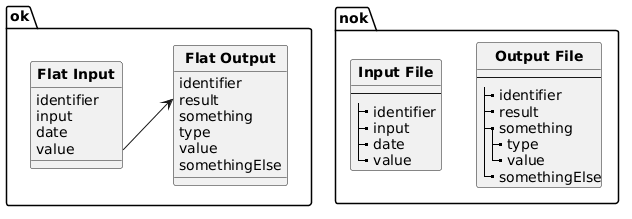

I'd like to check if this can work when I have indented elements. How would I make the following mapping work?

http://www.plantuml.com/plantuml/uml/ZP2nQiGm38PtFuNe6CZIyOPoImywzH6AIDGx4yKsjbmusdltsabH4fAXcl9_4UZtTqw2KVB8vcPxWYGKoSizq9mx6picamRh0aOSWQsZ-Xk2vtiDnWJi1hmI-E7RG9cECILuWgQvC0gykP2bQGh01DOzGzsQfrnmOZyjnGNLRKqz2cduGivpUfWo1wVUiwnk-Ip7nq1Pf9HPD2O_ajoikogPJEmBR9PVEMcjyhxJQTg3DhOljKC1VsSUYoktbpLvWejbMcIjwhUjVlvyRCmfLNaArD-Srmft1giyBQ06_z40LbYDAjbALQncT-KK71gklSsPN9z7_WK0
