[nwdiag] Adding some shift parameter to transform opposite layout on an pseudo mini alternate layout

asked Sep 12, 2021 in Wanted features by The-Lu (76,720 points)

Hello PlantUML team,

With the new engine (V1.2021.10), could you add some shift parameter (1/2, 1/3, 1/4,... of shift) to transform opposite layout on an pseudo alternate layout...

IMHO: This layout is very too straight line... the little offset or shift is not clearly visible...

Regards,
Th.

related to an answer for: [nwdiag] Issue (on other internal networks) with the new layout engine

Your answer

Your name to display (optional):

Email me at this address if my answer is selected or commented on:

Privacy: Your email address will only be used for sending these notifications.

Anti-spam verification:

Please complete the anti-spam verification

[Antispam2 Feature: please please wait 1 or 2 minutes (this message will disappear) before pressing the button otherwise it will fail](--------)

To avoid this verification in future, please log in or register.

1 Answer

answered Sep 14, 2021 by plantuml (295,960 points)

First, we agree that we could improve the current layout for nwdiag.

However, it's not that simple.
Somehow, we have to align boxes because it greatly simplify box connections.
We have added a slight shift to avoid too straight lines, but it's clearly not enough.

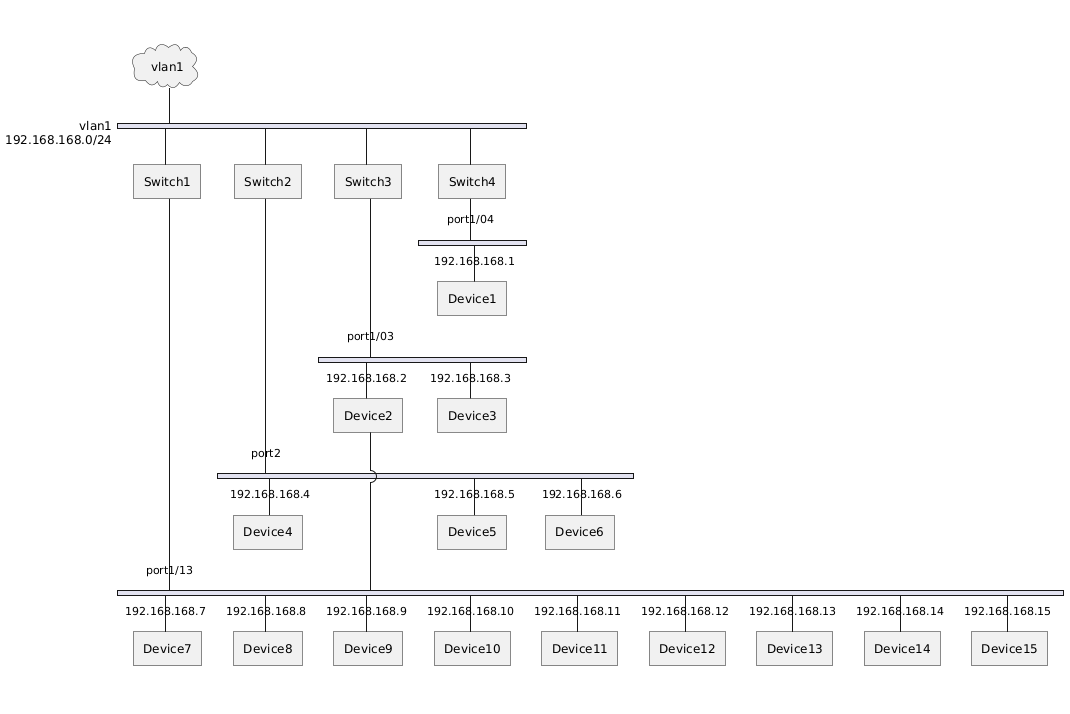

I suggest that we work on some complex example, something like:

Maybe you can use any image editor to manually edits links so that we see how we should draw this example.

Thanks!

commented Sep 14, 2021 by The-Lu (76,720 points)

Hello PlantUML team,

See this proposal:

On:

https://github.com/plantuml/plantuml/discussions/671

Because I does not directly post image on this forum!
Regards,
Th.
