WBS: missing link and missing box

0 votes
asked Dec 13, 2021 in Bug by PascalChap (340 points)
edited Dec 14, 2021 by PascalChap

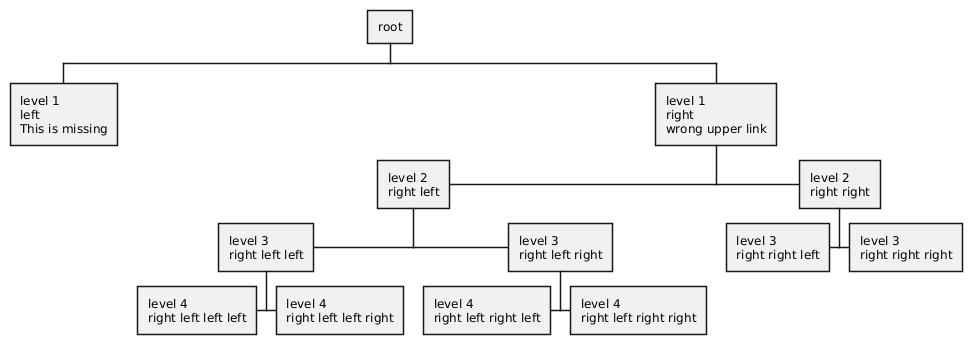

With the next diagram, the link between the root and the first level is missing, and the first level box on left is not displayed

@startwbs test

+ root
 + level 1\nright\nwrong upper link
  + level 2\nright right
   + level 3\nright right right
   - level 3\nright right left
  - level 2\nright left
   + level 3\nright left right
    + level 4\nright left right right
    - level 4\nright left right left
   - level 3\nright left left
    + level 4\nright left left right
    - level 4\nright left left left
 - level 1\nleft\nThis is missing



1 Answer

+2 votes
answered Dec 14, 2021 by plantuml (295,000 points)

Many thanks for the report.

This is fixed on the online server and on last snapshot.
