Manipulating font size and face for mindmap node using inline font

Question

I'm using inline <font> tags to format text inside mindmap nodes. I'm able to change font size but not font family. In the markup below I want to change the font face for CHANGE_ME but no matter what I try it doesn't

• <font size=20 face="consolas">

• <font size=20 face=consolas>

• <font size=20 style="font-family:'Consolas'">

@startmindmap

+ root
**:<font size=25>font_style_1_default</font>
<font size=20 face=consolas>CHANGE_ME</font>
<font:monospaced>MONOSPACED</font>;

@endmindmap

Comments

Hello R.,

Yes it seems there are some defects about monospaced font, here is a minimal not working example:

@startmindmap
+ root
**:Input
<code>
  This is ""monospaced""
  This is <font:monospaced>monospaced</font>
</code>;
**[#pink]:Output
  This is ""monospaced""
  This is <font:monospaced>monospaced</font>;

footer 1.2024.5beta1/%version()
@endmindmap

See also other working/not working examples here:

• https://plantuml.com/en/mindmap-diagram#063ae681c2d356f2

Regards,
Th.

Answer 1

Thank you, will check them out.

Comments

Hello R., and all,

After analysing on:

• https://github.com/plantuml/plantuml-server/issues/334

There is not issue, here is an update of the use-case:

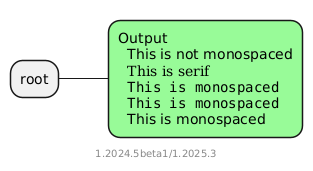

@startmindmap
+ root
**[#palegreen]:Output
  This is not monospaced
  <font:serif>This is serif</font>
  ""This is monospaced""
  <font:monospaced>This is monospaced</font>
  <font:"jlm_cmtt10">This is monospaced</font> ;
@endmindmap

The monospaced font (with newest plantuml server [plantuml.com]) is now a sans serif monospaced font.

Enjoy,
Regards,
Th.
