Two problems: Edges overlapping and Diagram layout

Question

Hello.

For the following component diagram:



@startuml

title Flujos de información entre el sistema y los sistemas externos

skinparam componentStyle uml2



component [Sistema de\nrecomendaciones] as Sistema #white



component [Agente de\nusuario] as AgenteDeUsuario



component [Gestor de contenidos\nde RTVE.es] as GestorDeContenidos



note top of GestorDeContenidos

¿La BD del CMS?

¿El API REST?

end note



component [Analizador/etiquetador\nde textos] as Etiquetador



note top of Etiquetador

Semantic tagging service,

Semantic text analysis API,

or natural language processing

(NLP) text analysis engine

end note



AgenteDeUsuario -> Sistema: "contenido (vídeo/audio/página) visto,\ncontenido recomendado visto"

GestorDeContenidos -> Sistema: "contenido (vídeo/audio)\ncreado/modificado/eliminado"

Etiquetador -> Sistema: "etiquetación/categorización\nde contenidos"

Sistema -> AgenteDeUsuario: "recomendaciones"



@enduml





I hace the followwing problems:



EDGE OVERLAPPING PROBLEM:



I have defined two unidirectional relations:

AgenteDeUsuario -> Sistema

Sistema -> AgenteDeUsuario

but, PlantUML paint it like bidirectional!!



DIAGRAM LAYOUT PROBLEM:



Diagram layout is so much widespread horizontally.

Could it be possible to specify a flag "layout" to "hierarchical" or

to "circo"?



RUNNING SOFTWARE VERSIONS:



O.S.: Windows 7 64 bit

GraphViz: 2.38.0 (20140413.2041)

Java: 1.8.0_45-b15

PlantUML: 8029



Thanks in advance.

Answer 1

You should use --> arrow instead of ->

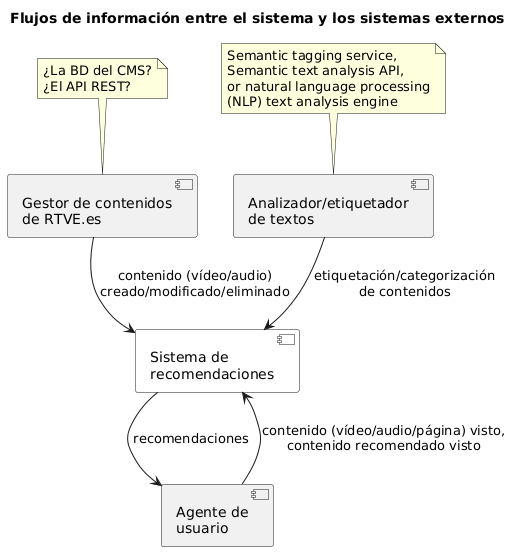

The result would be far better:

 @startuml
title Flujos de información entre el sistema y los sistemas externos
skinparam componentStyle uml2

component [Sistema de\nrecomendaciones] as Sistema #white

component [Agente de\nusuario] as AgenteDeUsuario

component [Gestor de contenidos\nde RTVE.es] as GestorDeContenidos

note top of GestorDeContenidos
¿La BD del CMS?
¿El API REST?
end note

component [Analizador/etiquetador\nde textos] as Etiquetador

note top of Etiquetador
Semantic tagging service,
Semantic text analysis API,
or natural language processing
(NLP) text analysis engine
end note

AgenteDeUsuario --> Sistema: "contenido (vídeo/audio/página) visto,\ncontenido recomendado visto"
GestorDeContenidos --> Sistema: "contenido (vídeo/audio)\ncreado/modificado/eliminado"
Etiquetador --> Sistema: "etiquetación/categorización\nde contenidos"
Sistema --> AgenteDeUsuario: "recomendaciones"

@enduml



Hopes it help!

Comments

Thank you very much: your response has been immediate and correct; it fix my problems.

I was using "->" because read on the reference guide, "1 Sequence Diagram",
"1.1 Basic examples" this:
    It is also possible to use <- and <--. That does not change the drawing, but may
    improve readability.
And I understand, wrongly, that "->" and "-->" were interchangabled on ANY kind of diagram.
I think this topic of arrows is a bit confuse in the ref guide.
