Connection between fields in classes without descriptions not working

Question

@startuml

!define table(x) class x << (T,#FFAAAA) >>



table(Settings) {

  Table for all settings.

  ==

  <u>userId</u> int(11)

   int(10) -- A comment

  field1 int(10)

  field2 varchar(128)

}



table(Mitarbeiter) {

Table Mitarbeiter

==

+ field3

+ field4

}



Settings::field1 -> Mitarbeiter::field3

@enduml

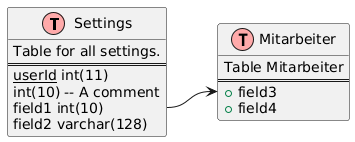

This is my code. It gives a StringIndexOutOfBoundsException: http://www.plantuml.com/plantuml/png/JOzD2i8m48NtESKJDmrQjUf2IWouARXmfHU8xLG3QOKa5K6ykobjeBCOXk_DpvjPHRLk2LxT3IKVZj8ev_2144XkotbHd49mICaO6vgkvBrk7uxZou1Rpr2_B9GnSAEs2ihn69BePEV8dYknxYHqwvCiuu4FvOOZJN52-MeQQdtWjIPJPL6DO8ktikLJsIJR7ZZxHIiNxPMza_PaUpU3bmbamSDYMB6BnRuVZp_a-NWmbTEv4U_-

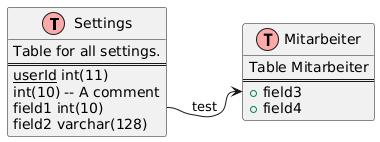

However if you give the connection between the two fields a name:

Settings::field1 -> Mitarbeiter::field3 : test

there will be a small extra arrow printed that belongs nowhere behind the label: http://www.plantuml.com/plantuml/png/JOzD2i8m48NtESKJDmrQjUf2IWsu4LouqWl4Tgg1j48o5K6ykobjm5aCm_Vcvysaejgq1DOtIybRehJQUxnH54Yky-dnU0WXePGGOcYw4BDfxrxY8u1hpr0_7RIryAEs2Cf-7rBHgSwJErN5ibCmBITP9WCVofL4ckA0yjaqr7BWjI5RPL6DO8sNTkL3koHRxwJuHYjdmzhTo32vtitWvG-Au64shDZ4OjkFnn_oV3oOgl-v4M-GWydp3m00



I hope this helps you fix these bugs.

Answer 1

Hi,

Thanks for your examples  : it really help to fix the issue.

Unfortunately, there seems to be an issue within GraphViz. We've been able to build a beta that turns around this issue in some cases. Your examples are working fine with it, but other may probably fail. Do not hesitate to post again when you'll have some other crashes.

Here is the beta https://dl.dropboxusercontent.com/u/13064071/plantuml.jar

Regards,
