Improve representation of transition between super state to sub state

0 votes
asked Jan 27 in Wanted features by dmf19 (380 points)

Transitions between super- and sub-states are a bit odd in that they do not terminate at the edge of the super-state, but inside it at some arbitrary spot:

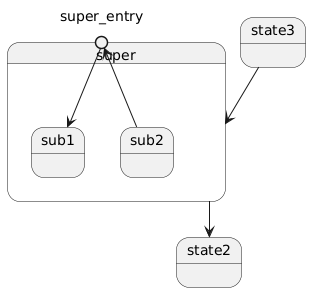

If I use an entry point instead, it looks a bit better:

1 Answer

0 votes
answered Jan 29 by dmf19 (380 points)
No need to address this specifically.  I have bundled a few improvements into
