Sprites of an arrow are displayed with white background

0 votes
asked May 31, 2023 in Bug by kirchsth (6,240 points)

If an arrow is displayed with an sprite in the label the "transparent" sprite background is white and not the background color of the rectangle. If a white arrow text color is selected only a white rectangle is visible.
I would expect color transparent instead of white (like a sprite in a rectangle)

thank you and best regards
Helmut

1 Answer

0 votes
answered Jun 11, 2023 by kirchsth (6,240 points)
edited Jun 11, 2023 by kirchsth

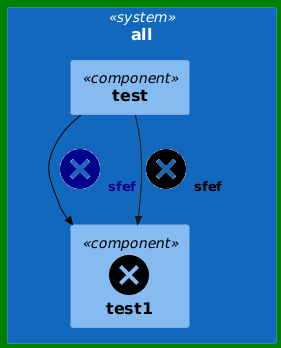

Based on PlantUML Q&A fix of https://forum.plantuml.net/17926/sprite-transparent-only-jar-defined-sprites-are-working all transparent sprites are working

Thank you
Helmut

PS.: the PlantUML picture above is cached for 5 days, therefore I used a minor changed Plantuml text that the updated image with the fix is displayed






...
