sprite transparent: only jar defined sprites are working

0 votes
asked Jun 4, 2023 in Bug by kirchsth (6,240 points)
edited Jun 4, 2023 by kirchsth

related to 17918,

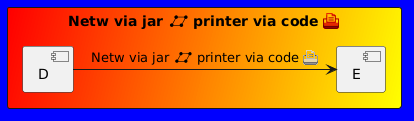

Only jar defined sprites support transparent if they are part of an arrow label.
If the sprite is defined in source
a) transparent is ignored if it is part of a arrow label
b) transparent is "semi-correct" if it is part of a rectangle label



"semi-correct": as long no gradient colors are used (first color background color is used)

Thank you and best regards
Helmut

1 Answer

0 votes
answered Jun 11, 2023 by plantuml (295,000 points)
selected Jun 11, 2023 by kirchsth

Best answer

Thanks for the report.

We have slightly improved transparent support.

Tell us if it works better for you!

commented Jun 11, 2023 by kirchsth (6,240 points)
Thank you for the fast implementation, it works perfect I can close my C4 issue
...
