Last label on last elseif branch does not get rendered

0 votes
asked Aug 17, 2023 in Bug by corec (120 points)

There seems to be some issue on using labels within the last elseif branch. The last label before the merge doesn't get rendered. See following code [1]. Result happens on the plantuml release version and the online version:

@startuml
start
if (condition A) then (yes)
  :Text 1;
  ->txt1;
elseif (condition B) then (yes)
  :Text 2;
  ->txt2;
  stop
(no) elseif (condition C) then (yes)
  :Text 3;
  ->txt3;
(no) elseif (condition D) then (yes)
  :Text 4;
  ->txt4;
else (nothing)
  :Text else;
  ->txt else;
endif
stop
@enduml

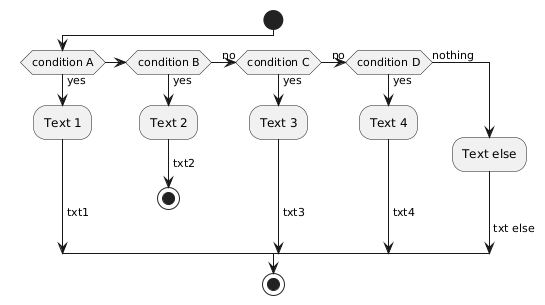

As you can see the arrow label after Text 4 doesn't get rendered at all.

commented Aug 24, 2023 by The-Lu (65,440 points)
Hi all,

Just for traceability, on the same topic of missing label, see also this defect:
- https://forum.plantuml.net/15605/activity-missing-arrow-label-on-end-merge

Regards,
Th.

1 Answer

0 votes
answered Aug 29, 2023 by plantuml (295,000 points)
This should be fixed with last snapshot

https://github.com/plantuml/plantuml/releases/tag/snapshot
...
