Problem with nested border color

0 votes
asked Mar 24, 2015 in Bug by skim (120 points)

A have example:

<pre>

 skinparam usecaseActorBackgroundColor white

skinparam usecaseBackgroundColor white
skinparam usecaseArrowColor black
skinparam usecaseBorderColor black

left to right direction

usecase 1
usecase 3
usecase 4
usecase 6
usecase 7
usecase 8
usecase 10
rectangle "Foo" {
        rectangle 2
        rectangle 5
        rectangle 9
}

1 .. 2
2 -> 3
4 .. 5
5 -> 6
5 <-> 7
8 .. 9
9 -> 10

</pre>

With output:

Output

Problem is with border color of nested rectangle.

PlantUML version is 8021.

Kind regards,

Michal

1 Answer

+1 vote
answered Mar 25, 2015 by plantuml (265,020 points)

Hello,

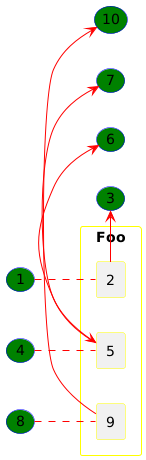

The real syntax is :

skinparam usecaseBackgroundColor green
skinparam usecaseBorderColor blue
skinparam rectangleBorderColor yellow
skinparam usecaseArrowColor red
left to right direction
usecase 1
usecase 3
usecase 4
usecase 6
usecase 7
usecase 8
usecase 10
rectangle "Foo" {
        rectangle 2
        rectangle 5
        rectangle 9
}
1 .. 2
2 -> 3
4 .. 5
5 -> 6
5 <-> 7
8 .. 9
9 -> 10

Does it help you ?

commented Mar 25, 2015 by skim (120 points)
Ah.. Thanks, that helps me.
...
